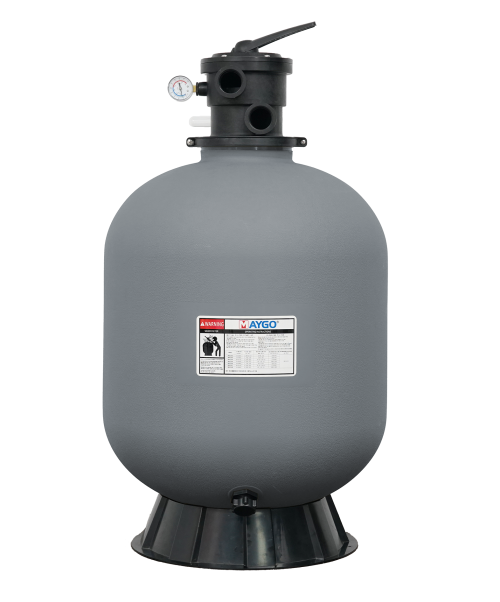

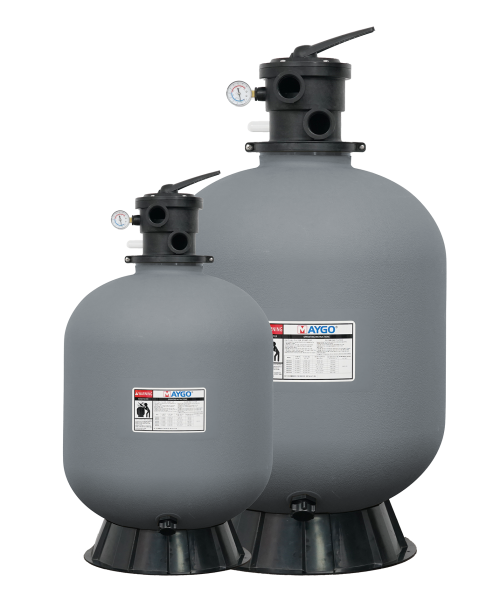

Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Model
NGA2504

Item specifics

Max Working Pressure
200kpa/28psi/2.0bar
Factory Testing Pressure
300kpa/44psi/3.0bar
Max Water Temp
40℃(104℉)
Size Of Silica Sand
50m³/h/㎡
Color can be customized
Yes
Filter Diameter
360-600mm

Review

Description

Wholesale 510mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Working Condition●Max Working Pressure:200kpa/28psi/2.0bar●Factory Testing Pressure:300kpa/44psi/3.0bar●Max Water Temp:40℃(104℉)●Size Of Silica Sand:0.5-0.8mm●Max Filtration Velocity:50m³/h/㎡Color can be customized
Performance Table
Model
No.
A C Filter
Area(㎡)
Valve
Connections
Max Flow Rate Sand(KG)
mm in mm in
NGA2501 360 14.2 730 28.7 0.1 1.5inch 50mm 72LPM 4.32m³/h 20
NGA2502 400 15.7 810 31.9 0.13 1.5inch 50mm 102LPM 6.12m³/h 35
NGA2503 460 18.1 840 33.1 0.16 1.5inch 50mm 130LPM 7.8m³/h 45
NGA2504 510 20.1 860 33.9 0.22 1.5inch 50mm 180LPM 10.8m³/h 85
NGA2505 620 24.4 1075 42.3 0.31 1.5inch 50mm 255LPM 15.3m³/h 145
Installation Sketch
Features
NGA Plastic Top Mounted Sand FiltersFeatures
●Transparent lid cover allows easy inspection of the sand bed
●Top diffuser ensures even distribution of water over the top of the sand bed
●Air relief enables easy release of trapped air during operation of the filter
●Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action
Download
NGA Top Mounted Plastic Sand Filter Catalogue
NGA Top Mounted Plastic Sand Filter Manual
