Model
AC Solar Pool Pump

Item specifics

Working temp:
5-50℃
Ambient temp:
≤40℃
System pressure:
0.3MPa
P1 Power:
0.5-3HP
Flow Rate:
14-28m3/h
Head:
6.5-19m
AC Interver Output
220-240V
PH
3 Phase

Review

Description

3 Phase Solar Pool Pump AC Type for In/Above Ground | AC Inverter 50/60PH

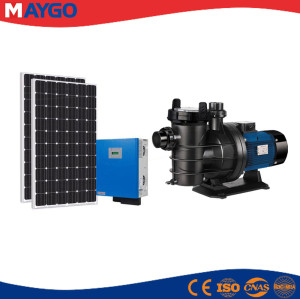

AC Solar Pool Pump System

Photovoltaic water pump system consists of the following four parts: Solar cell,Panel,Photovoltaic water pump inverter,Three-phase AC water pump and water storage device.Pv pump inverter solar panels generate DIRECT current conversion.For alternating current, alternating current drives alternating current pumps to drill holes, rivers,A water storage device for pumping water,as in a lake.  The inverter adopts efficient MPPT algorithm to maximize.The earth uses electricity from solar panels  This soalr pump inverter is specially designed for field irrigation,drinking water in small towns pump system,using hybrid design with solar and utility/DG Energy online complementation.


Features:

1. It has strong overload capability and can drive the 3ph pump ;

2. Super MPPT function, efficiency >99%;wide range of MPPT input voltage ranges;

4. IP65 and fanless design,aluminium casting,outdoor use, adapt to harsh application environments;

5. RS485 and GPRS remote monitoring and start-stop management through APP;

6.Meet the simultaneous input of the utility Grid/DG and solar, automatic switching, online energy complementary, solar priority, keep the pump rated work, and achieve 24H water supply.

7.Perfect system protection, undervoltage, overload, overvoltage, overcurrent, grid phase loss, pump dry, phase loss, short circuit, overheating, etc.

8.Fully automatic operation control, soft start and soft stop,one key to start.


Parameter
How to configure the system?

Solar Panel(buy in local)+AC inverter+3ph pool pump

JNP1K1L+NSA120 pool pump,1.1KW,1.5HP,2inch

JNP1K5L+NSA150 pool pump,1.5KW,2HP,2inch

JNP2K2L+NSA250 pool pump,2.2KW,3HP,2inch

Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
First-class Motor
Protection class:IP55.Insulation class: F
Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.

SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.

Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
Download
AC Solar Pool Pump Catalogue
AC Solar Pool Pump Manual
