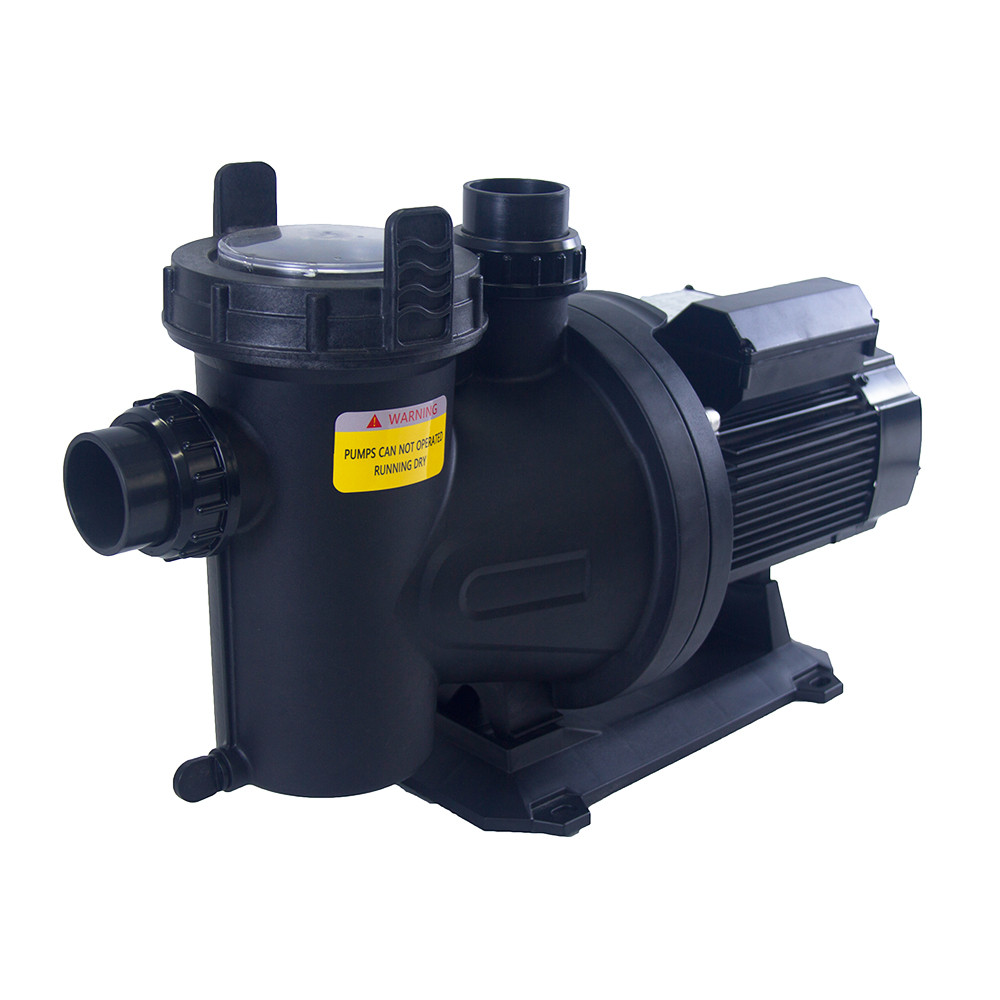

Factory Price New Arrival 50Hz 1.5HP NSM-Max Swimming Pool Pump for In/Above Ground Pool
Factory Price New Arrival 50Hz 1.5HP NSM-Max Swimming Pool Pump for In/Above Ground Pool
Factory Price New Arrival 50Hz 1.5HP NSM-Max Swimming Pool Pump for In/Above Ground Pool
Factory Price New Arrival 50Hz 1.5HP NSM-Max Swimming Pool Pump for In/Above Ground Pool
Factory Price New Arrival 50Hz 1.5HP NSM-Max Swimming Pool Pump for In/Above Ground Pool
Factory Price New Arrival 50Hz 1.5HP NSM-Max Swimming Pool Pump for In/Above Ground Pool
Model
NSM-Max

Item specifics

Working temp:
5-50℃
Ambient temperature:
≤40℃
System pressure:
0.3MPa
P1 Power:
0.5-2HP
Flow Rate:
14-28m3/h
Head:
6.5-19m

Review

Description

Factory Price New Arrival 50Hz 1.5HP Swimming Pool Pump for In/Above Ground Pool | ECAS SASO Certified 2 Years Warranty

Working Condition

●Working temp:5-50℃

●Ambient temperature:≤40℃

●System pressure:0.3MPa

●P1 Power:0.5-2HP

●Flow Rate:14-28m³/h/233-466 l/min

●Head:6.5-19m

Parameter
Model
HP
Head(m)
Flow(m³/h)
Flow(l/min)
L*W*H(cm)
GW(KG)
NSM35
0.5
6.5
14
233
58*26*39
10.3
NSM50
0.75
8.5
17
283
58*26*39
11.1
NSM75
1
11.0
21
350
58*26*39
11.7
NSM100
1.2
14.5
24
400
66*26*41
14.1
NSM120
1.5
16.5
25
417
66*26*41
15.3
NSM150
2
19.0
28
467
66*26*41
16.5
Performance Curve & Installation Sketch
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
First-class Motor
Protection class:IP55.Insulation class: F
Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.

SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.

Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
